125W 57mm Round Shape Brushless Dc Motor Bldc High Torque Motor

Product Categories
changzhou hontru motor co.ltd
Contact Now

125W 57mm Round Shape Brushless Dc Motor Bldc High Torque Motor

  • 1
  • 2

Model Number : HC57BLF

Place of Origin : Changzhou, China

Brand Name : Hontru

Certification : CE ISO RoHS

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 57mm Round Brushless Motor

Number of poles : 4

Number of phases : 3

Rated voltage (VDC) : 24

Rated speed (rpm) : 3000

Winding method : Y

Hall distribution angle : 120°

Insulation level : B

Insulation resistance : 100MΩ Min.500VDC

Dielectric strength : 600VAC,1Min.

Maximum radial load : 28N

Maximum axial load : 10N

Contact Now

57mm Square Brushless Motor

Specification

Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 600VAC,1Min.
Maximum radial load 28N
Maximum axial load 10N

Wiring
Function Definition Color Wire Gauge
+5V Red

AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White

AWG22 UL1430
V Blue
W Green

Motor model HC57BLY47 HC57BLY52 HC57BLY62 HC57BLY72 HC57BLY92 HC57BLY112
Number of poles 4
Number of phases 3
Rated voltage (VDC) 24
Rated speed (rpm) 3000
Rated torque (N.m) 0.07 0.11 0.18 0.22 0.33 0.45
Rated current (A) 1.5 2 3.5 4 6 8
Rated power (W) 25 41 57 79 110 140
Peak torque (N.m) 0.21 0.33 0.54 0.66 0.99 1.35
Peak current (A) 4.5 6 10.5 12 18 24
Back EMF constant (Vrms/Krpm) 6 6.3 6.4 6.2 6 6.5
Torque constant (N.m/A) 0.058 0.062 0.06 0.059 0.057 0.065
Moment of inertia (g.cm2) 30 45 60 120 180 240
Body length L (mm) 47 52 62 72 92 112
Weight (kg) 0.33 0.45 0.65 0.8 0.95 1.2

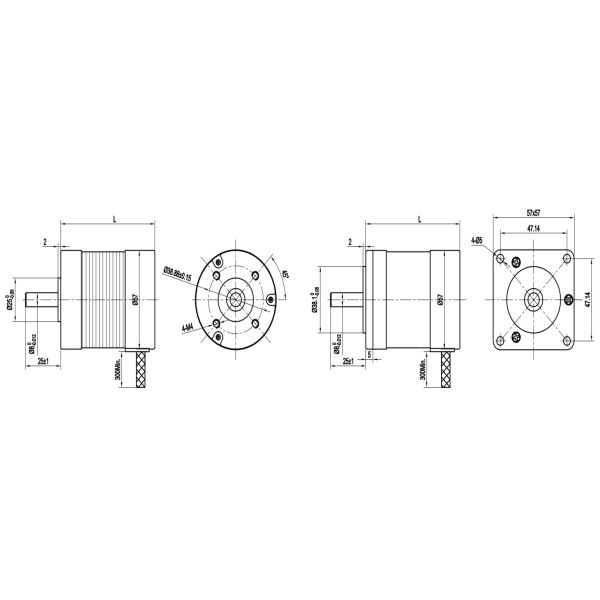

Outline:

125W 57mm Round Shape Brushless Dc Motor Bldc High Torque Motor
